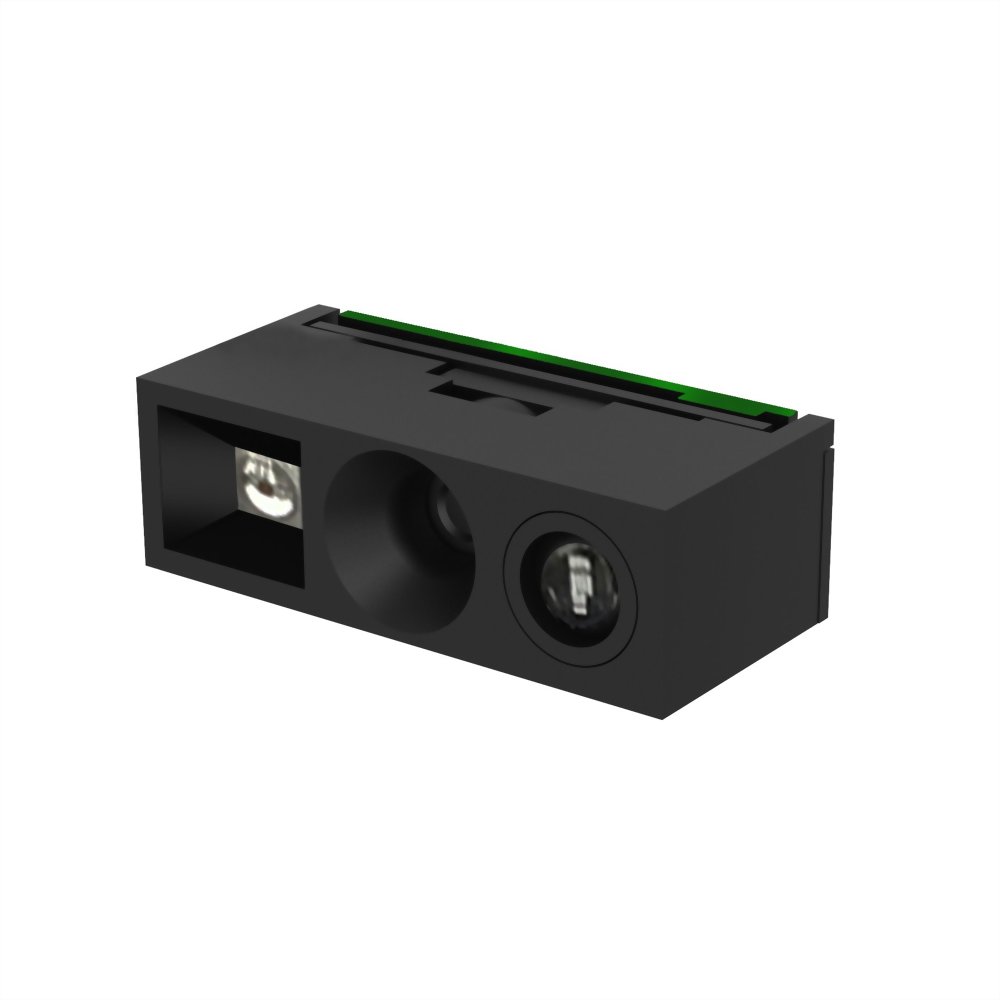

Scan Engine - 2D AI3255
● Interface: USB HID, Virtual-COM , UART
As a trusted scan engine supplier, we are committed to delivering advanced 2D barcode scan modules tailored to OEM needs. Manufactured in Taiwan, this barcode engine combines cutting-edge technology with durable design. The compact size and versatile interface options make it ideal for mobile and industrial devices. From logistics to healthcare, our scan engines optimize operational efficiency while ensuring precision and ease of integration.
Contact us today to learn how our reliable solutions can elevate your products!
Features
Dimensions: 21.8 x 11.2 x 7.1 mmInterfaces: USB HID, Virtual-COM, UART
Applications: Barcode scanners, industrial PDAs, data collectors
Advanced Decoding: Supports 1D and 2D barcodes
Compact Design: Ideal for seamless OEM integration
|
2D Baecode Scan Engine's Specifications： |
|||||||
|
Model Name |
AI 3255 |
||||||
|
Description |
2D Barcode Scan Engine |
||||||
|
Performance Characteristics |
|||||||
|
˙ |
Illumination Element |
Red Light / White Light |
|||||
|
˙ |
Aiming LED |
Red Light |
|||||
|
˙ |
Image Sensor |
|
CMOS (640×480 pixels) |
||||
|
˙ |
Depth of Field |
13 mil EAN 13 : |
360 |
mm |
|||
|
˙ |
Best Resolution |
|
1D (4mil)：Code 39 |
||||
|
˙ |
Print Contrast |
|
≧ |
25 |
% |
||
|
˙ |
Scan Angle |
|
Tilt: 360° / Pitch ±50° / Skew ±50° |
||||
|
˙ |
Indicators |
|
LED & beeper |
||||
|
˙ |
Interface |
|
USB HID, Virtual-COM , UART |
||||
|
˙ |
Symbologies |
|
1D: Code 128, EAN-13, EAN-8, Code 39, Code 32,
UPC-A, UPC-E, Codabar, |
||||
|
Electrical Characteristics |
|||||||
|
˙ |
Input voltage |
3.3 VDC ± 5% |
|||||
|
˙ |
Current - operating |
|
|
< |
220 |
mA |
|
|
Physical Characteristics |
|||||||
|
˙ |
Dimension (W x D x H) |
21.8 x 11.2 x 7.1 mm |
|||||
|
˙ |
Weight |
3.5 g |
|||||
|
User Environment |
|||||||
|
˙ |
Temperature-operation |
-10°C to 55°C |
|||||
|
˙ |
Temperature-storage |
-20°C to 65°C |
|||||
|
˙ |
Humidity |
5% to 95% relative humidity, non-condensing |
|||||
|
˙ |
Ambient Light |
0-100,000 lux (total darkness-bright sunlight) |
|||||
|
Decode Zone (DOF is measured at the office under 600 lux and by Standard barcode. There are +/- 10 mm Torrence. DOF may be also impacted by barcode quality and environmental conditions. ) |
|||||||
|
˙ |
4mil Code39 |
|
|
60 |
~ |
120 |
mm |
|
˙ |
5mil Code39 |
|
|
50 |
~ |
165 |
mm |
|
˙ |
13mil EAN13 |
|
|
50 |
~ |
360 |
mm |
|
˙ |
6.67 mil PDF417 |
|
|
65 |
~ |
160 |
mm |
|
˙ |
10 mil DataMatrix |
45 |
~ |
180 |
mm |
||
|
˙ |
20 mil QR Code |
|
|
45 |
~ |
280 |
mm |
